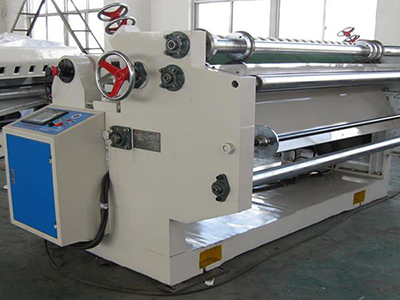

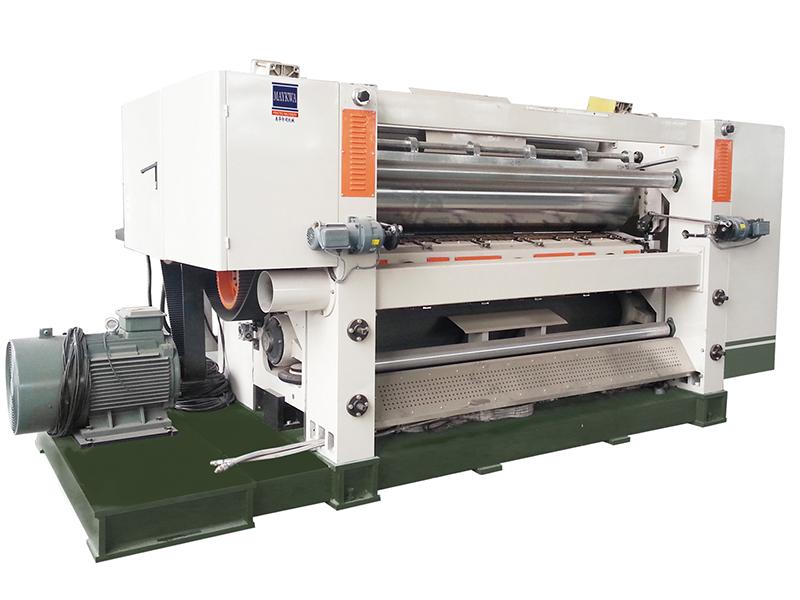

Model: SF-405C

• Design speed: 250m/min.
• Effective width: 1200-2500mm.
• Main corrugated roller: φ405mm (depend on corrugator type), pressure roller: φ495mm, pre-heating roller: φ420mm.
• Adopt negative pressure type design and heat loss is low. The core paper can be uniformly pressed and attached to the surface of the corrugated roller to better shape. Besides, due to the uniform pressure, the corrugated top can be more evenly coated with glue to ensure better fitting of single face corrugated paper.
• Corrugated roller replacement can be finished in 15 minutes with a few button. When replacing the corrugated roller, the whole set of corrugated roller is driven by a motor then put into the machine and fixed on the base of the machine.
• The corrugated roll is made of 48CRMO high quality alloy steel, after heating treatment, the surface is ground and treated with tungsten carbide.
• Corrugated roller and pressure roller adopt air bag control system with high stability, also have air pressure control buffer effect.
• The gluing quantity is controlled by electric adjustment, with the electric gluing device, the gluing system can operate independently when the main engine stops, preventing the glue from drying out.
• Adopts mobile gluing system to realize not only convenient cleaning but also convenient maintenance and repair work.
• Complete function, easy operation and humanization. Simple operation control system and touch screen operation interface are adopted to display operation status, function selection, fault indication, troubleshooting and parameter setting with color graphics.
• Use internal preconditioner with spray system to adjust core paper temperature and moisture.
• The main and auxiliary corrugated roller and pressure roller bearings all adopt high temperature lubricating grease to ensure the bearing life and smooth operation.

• Working width: 1200mm-2500mm
• Operation direction: right or left (depend on customer plant)
• Design speed: 250m/min
• Temperature range: 160-200℃
• Air pressure: 0.4-0.9Mpa
• Steam pressure: 0.8-1.3MPa
• Corrugator type: UV or UVV

• Main corrugated roller diameter: φ405mm
• Auxiliary corrugated roller diameter: φ428m
• Pressure roller diameter: φ495mm
• Glue roller diameter: φ320mm
• Stick roller diameter: φ175mm
• Pre-heating roller diameter: φ420mm

• Main drive motor: 45kW
• Air draft motor: 15kW
• Glue reduction motor:100W
• Glue adjustment motor: 250W
• Glue pump motor: 2.2kW
