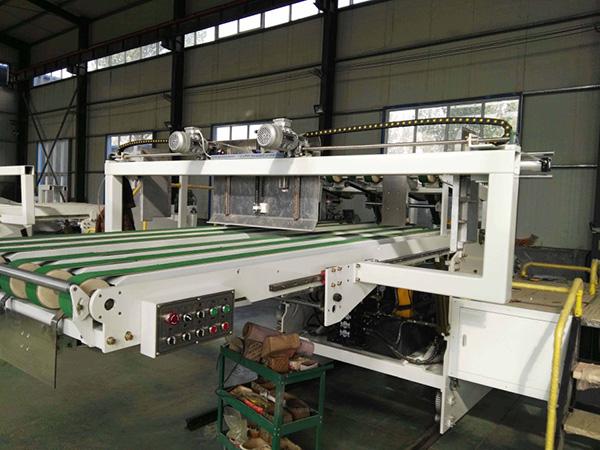

The corrugated board feeder machine is mainly used for paper feeding of the leading equipment such as printing machine and die cutting machine etc. The feeding speed can be up to 100-200 pieces of paper per minute.
The corrugated board feeder machine has the following features:
Reducing cost, improving efficiency and reducing waste:
There is no need of manual operation so that the numbers of the operators can be reduced, thus effectively cutting down the labor cost of the company and reducing labor intensity. It can also improve the processing speed effectively which also means increasing production efficiency. Meanwhile, the contact of the operators and the paper board can be reduced as well to avoid the damage of the paper board caused by manual intervention.

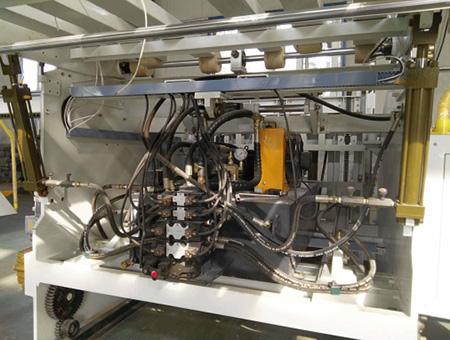

this machine is equipped with 2 sets of relatively mature hydraulic systems. All the tilting, lifting and descending of the conveyor is driven by the hydraulic cylinder which features large power, high stability and good endurance. The transmission of the conveyor is driven by the hydraulic motor which occupies small area and features large torque so that it can realize uniform transmission.

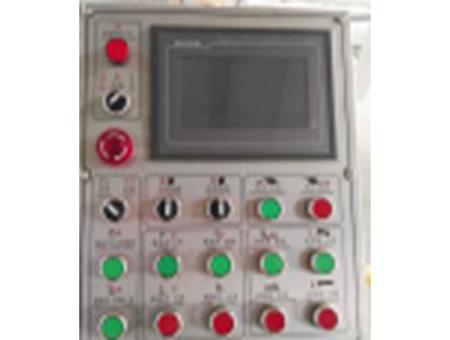

It adopts buttons and touch screen of graphical human machine interface and PLC control so that the identification and operation is easy. It can also display the running state in real time.
Convenient application: this feeder machine features strong site suitability. It can adopt pallet jack (hydraulic cart) for paper feeding. Meanwhile, it can be matched with the ground logistics.
Working mode: the automatic paper feeding mode of this machine is lateral moving. This feeder can also be applied for semi-automatic manual flap paper conveying.
Main technical parameters and performance
Max specification of the paper board: 1200 X2400 mm
Stack height of the paper board: 1800 mm
Max stack weight: 1500 Kg
Stack rows: single row
Lifting and descending mode of the paper board: hydraulic
Turnover power of the fork: hydraulic
Lifting and descending power of the lateral conveyor: hydraulic
Power of the conveyor: hydraulic motor (the independent hydraulic pump station which is equipped in order to ensure stable transmission)
Side baffle and front baffle adopts pneumatic alignment adjustment. The side baffle also adopts digital adjustment.
The whole machine moving: the machine itself can move back and forth, and when the printing machine is split, the machine will move back automatically.
To keep the cardboard height in the work, the lifting fork automatically pushes the cardboard up. And the cardboard will drop with one click.
The conveying belt can automatically control the start and stop of the paperboard according to the height of the feed bin of the printing machine.

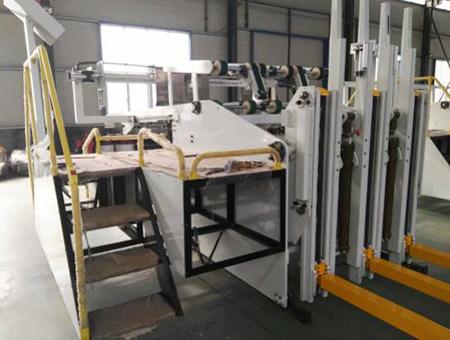

Automatic prefeeder machine can be used for automatic printer slotter die cutter machine, automatic edge feeder creasing die cutting machine, automatic rotary die cutting machine and other ancillary mechanical equipment, can match the speed of 250pcs/min. This automatic feeding machine features fast feeding and efficient labor saving for cardboard feeding conveyor, can guarantee that the above-mentioned equipment normally continuous feeding, and greatly reduce the labor intensity, improving the utilization rate of the above several kinds of equipment. And decrease the touch times for cardboard sheet by operators, can reduce destruction of cardboard because of human intervention. The machine consists of fork lift structure, horizontal feeding mechanism, machine frame, hydraulic system equipment, paper feed-in roller conveyor, travelling unit and electric parts, etc.
1. Lateral positioning baffle, the specification of which can be electrically adjusted according to different size of cardboard.
2. Simple operation: buttons and touch screen, man-machine interface, PLC control, easy to identify, easy to operate, real-time display of the working state.
3. Paper roller, according to the cardboard size, can be adjusted.
4. Automatic control for output, frequency control of motor speed.
5. Fork automatically pushes cardboard before sending.
6. Feed roller is fixed on the ground.
7. The workbench is easy to operate.
8. The machine moves entirely: the machine can be self-moved back and forth, and when the printing machine is split, the machine will move back automatically.
To keep the cardboard height in the work, the lifting fork automatically pushes the cardboard upward, and press one key for safely downward running. The conveying belt can automatically control the stop of the paperboard according to the height of the feed bin of the printing machine
9. Hydraulic system control with gear motor keeps smooth operation and high durability.
