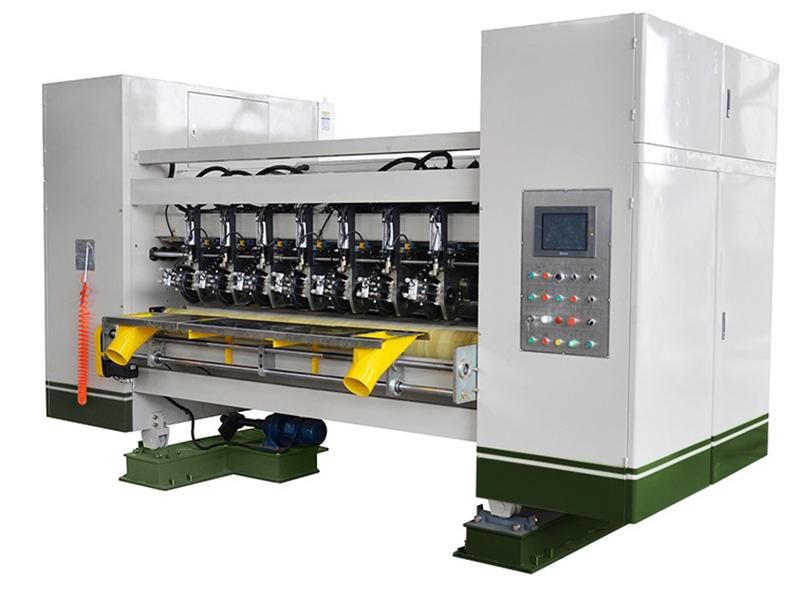

Computer Control Slitter Scorer

Features
  • Synchronous servo motor control the slitter and scorer, self reset and precise slitting. The servo-controlled slitter is able to save 999 orders and can achieve automatic changeover or manual changeover within 3 to 8 seconds without stopping the machine.
  • Designed with Schneider M258PLC control system, CANopen bus system, available in order management, equipped with speed synchronization signal input interface with the dryer.
  • The human-computer interface features 10.4-inch color touch screen, being available for 999 order and can achieve automatic changeover or manual changeover as well as failure alarm.
  • Our CNC slitter scorers supports three types of scoring that are respectively concave-convex type (three-ply), concave-convex type ( five-ply), and convex-flat type, which can be changed through electrical system. The scoring is controlled by computer to guarantee fine scoring effects.
  • The thin tungsten steel alloy blade of our computer control slitter scorer is sharp and durable enough to slit over eight million meters of paperboard.
  • Computer controlled auto grinding and manual grinding are available for this servo-controlled slitting machine. Regularly grind the blade while slitting the paperboard, increasing the slitting efficiency.
  • The imported synchronous belt used for paperboard conveying features higher precision, longer life and lower noise.
Regular Technical Specification:
  • Max working breadth: 2500mm
  • Operational direction: Left or right(Depending on the customers’ workshops)
  • Max speed: 200m/min
  • Minimum paper slitting width: 135mm; Max paper slitting width: 1850mm
  • Minimum indentation: 0mm
  • Positioning precision of slitter scorer roller: ±0.5mm
Specification for motor and other electric devices:
  • Slitter and scorer control servo motor: 0.4KW
  • Cutter roller drive motor: 5.5KW
  • Linear roller drive motor: 5.5K
Main imported components,raw material and their production place:
Name Brands/Production place Model
Main variable frequency motor Hengshui Electrical Machinery Company
Bearing Harbin
Mounted bearings Zhejiang Wuhuan Group
Relay French Schneider
proximity switch ,optoelectronic switch Japan omron
Programmable controller French Schneider CANopen bus system
Solenoid valve AIRTAC
Human-computer interface French Schneider
Slitter control French Schneider Synchronous servomotor
Slitter control French Schneider Synchronous servomotor
Scorer change control French Schneider Synchronous servomotor
Drain control French Schneider Synchronous servomotor
Left-right moving motor Shandong Jinbuhuan Speed Producer Co.,Ltd.
