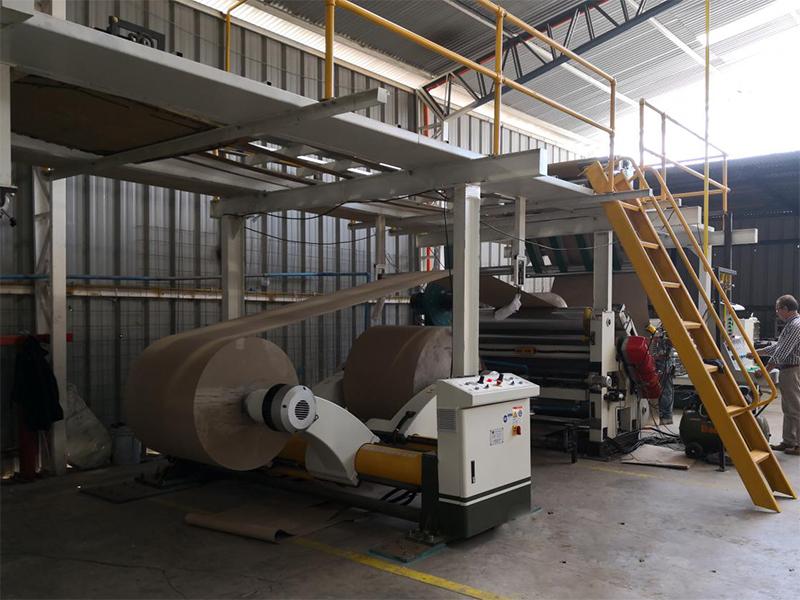

Single Facer Overhead Conveying System

Features:
  • The main frame of single facer overhead conveying system is connected by channel steel, I-steel and angle steel.
  • Both sides are provided with safety guardrails and safety personal pedals, and the operating surface is provided with safety escalator, effectively guarantee the safety of staff and easy operation.
  • Adopts independent frequency motor lifting mechanism and PVC conveyor belt to ensure the wave shape stable transmission of single face corrugated sheet.
  • All roller shaft surface is grinding and chrome plated.
  • The bridge is covered with high-strength composite board which is smooth, durable, low friction to reduce the resistance in sheet transportation.
Regular technical parameters:
  • Working width: 1200mm-2500mm
  • Max height: 3000mm
  • Working speed: 150m/min
  • Feed roller and tension roller：φ130mm
  • Conveying roller: φ180mm
  • Single facer lifting motor: 3KW (frequency control)
