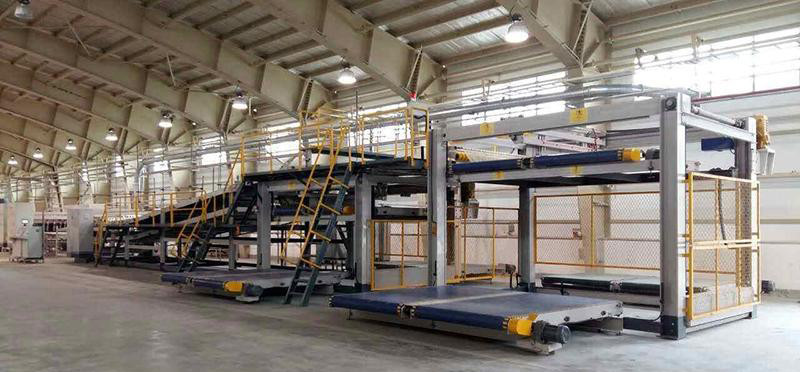

Fully Automatic Basket Stacker

Features:
  • Our automatic basket stacker features a five-section belt conveying, variable frequency closed-loop control, available in automatic, accurate counting, stable conveyor and quick separation to achieve the conveying process.
  • Paper pressing by the roller brings no damage to the paperboard, carbon fiber paper strips are strong and wear resistant.
  • The shutter can achieve automatic adjustment in accordance with the order structure, achieving alternating stacking between large,small as well as scattered orders.
  • The moving out of basket part is available by nylon plastic conveyor belt, non-destructive to the backing paper.
  • The lifting and lowering of the basket is achieved by elevator servo,with appropriate weight balancing, achieving high efficient energy saving. The basket, after moves out, will be delivered to the next production process by the conveyor belt platform.
Basic parameter
  • Model:DL2500
  • Max sheet stacking width:2250mm
  • Paper stacking length: Standard:500～3500mm (Being customizable in accordance with the customers’ needs)
  • Roller bed belt conveyors: Being configurable with the customers’ needs
  • Horizontal conveyor: Module belt
  • Stacking height: 1700mm
  • Max linear speed for production: 200m/min
  • Overall dimension L×W×H: 20000×3200×2800mm
  • Gross weight: 12T
System Parameter
  • Feeding system: Taiwan WEINVIEW or Kunluntongtai true color touch screen 10.4
  • Lifting system: High quality PLC from Taiwan Delta Electronics
  • Lift control: AC servo controller
  • Variable frequency drive: Taiwan Delta
  • Low-voltage apparatus: CHNT, Schneider Electric
Power Parameters
  • Conveyor roller drive:RV reduction gear: 3kw×5
  • Basket drive: gear speed reducer: 3KW×2
  • Jogger drive：RV reduction gear: 0.75KW
  • Lift drive:worm reduction gear: 15kw
  • Power: About30 KW
    • Notes: Various types of machine can adopt the universally used brands, with the number varying with the specific configuration.
