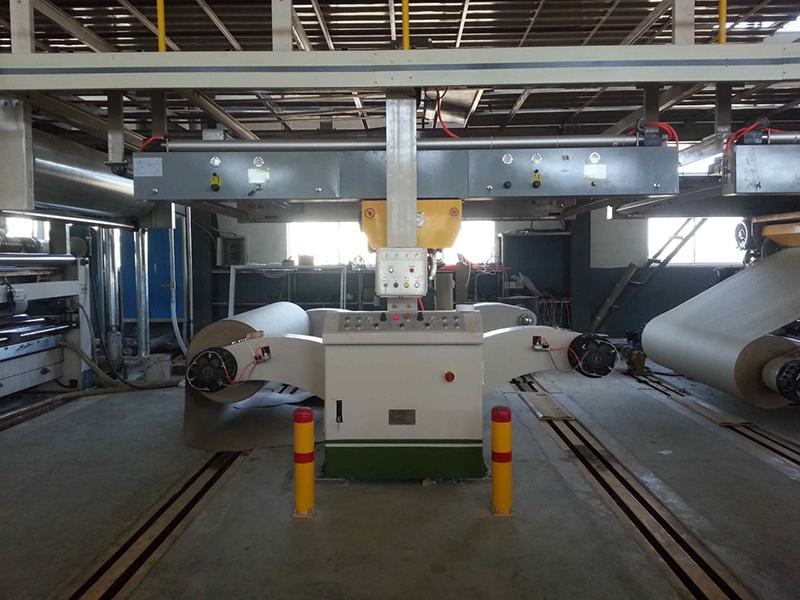

Automatic Paper Splicing Machine

Features
  • Max diameter for raw material:1500mm.
  • Designed with automatic tension control of the mill roll stand, available in high speed and efficient paper splicing.
  • Zero tail splice reducing paper loss (Overlapping part of the paper is the same as that of the tape, which is 40mm).
  • The paper splicing trolley can move out automatically, and achieve vacuum suction, easy paper filling, automatic tensile control, ensuring 100% paper splicing.
  • All designed with PLC control, which has precise operation, less faults and easy for maintenance.
  • When the first paper pulling is made by the buffer roll, an automatic alignment and easy pulling is available.
  • The machine features high quality and cylinder-controlled, free from fragments and bubbling caused by the ordinary motor.
  • Max speed of paper splicing:150m/min.
Main Accessories:
Name Manufacturer
Breaker Schneider
Contactor Schneider
Relay Schneider
Pneumatic components Japan
