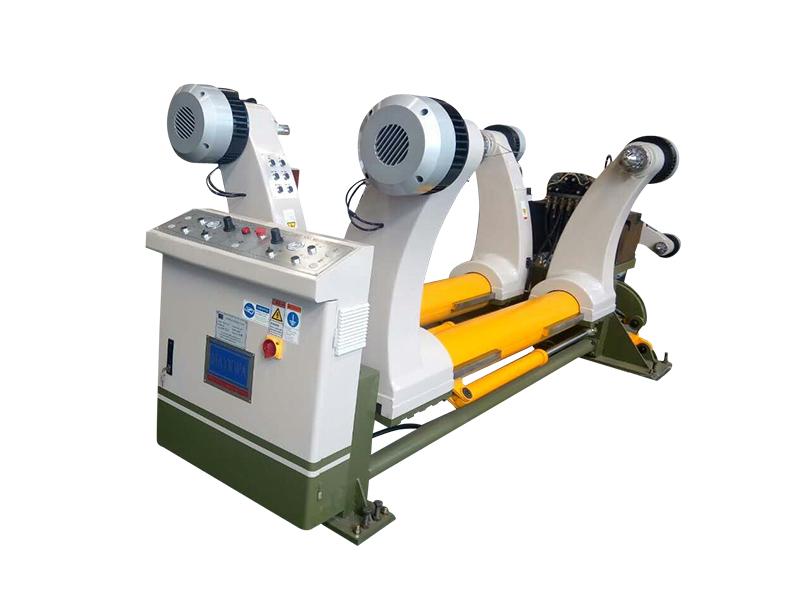

Hydraulic Shaftless Mill Roll Stand

Features
  • The movements of base paper such as clamping & loosening, middle moving, laterally translate are driven by full hydraulic system and lifting & lowering is driven by hydraulic system.
  • The braking device adopts multi-point brake system.
  • Each mill roll stand has 2 loading trolleys to realize simultaneous feeding from both sides.
  • Electrical components adopt central control and button operation. And paper core adopts automatic bulge clamp.
  • Main raw material and purchased parts: main shaft using TANKO seamless steel tube with Ø242mm, clamping arm using cast iron, and the base is welding by steel.
  • The electrical components are from CHINT or DELIXI.
  • The braking device adopts multi-point cylinder control system.
  • With double pole tooth clamping head, the clamping head is 3\4-inch double-pole type (the clamping head can be customized according to customer special needs)
  • Hydraulic station motor power: 2.2KW
Technical parameters:
  • Clamping range: 1000-2500mm
  • Clamping diameter: ￠350mm-1500mm
  • Main shaft diameter of mill roll stand: ￠240mm
  • Air pressure (Mpa): 0.4-0.8Mpa
Hydraulic system parameters:
  • Working pressure: 16-18Mpa
  • Lifting hydraulic cylinder: ￠100×440mm
  • Clamping hydraulic cylinder: ￠63×1300mm
  • Hydraulic station motor power: 3KW --380V -- 50Hz
  • Magnetic valve voltage: 220V 50 Hz
