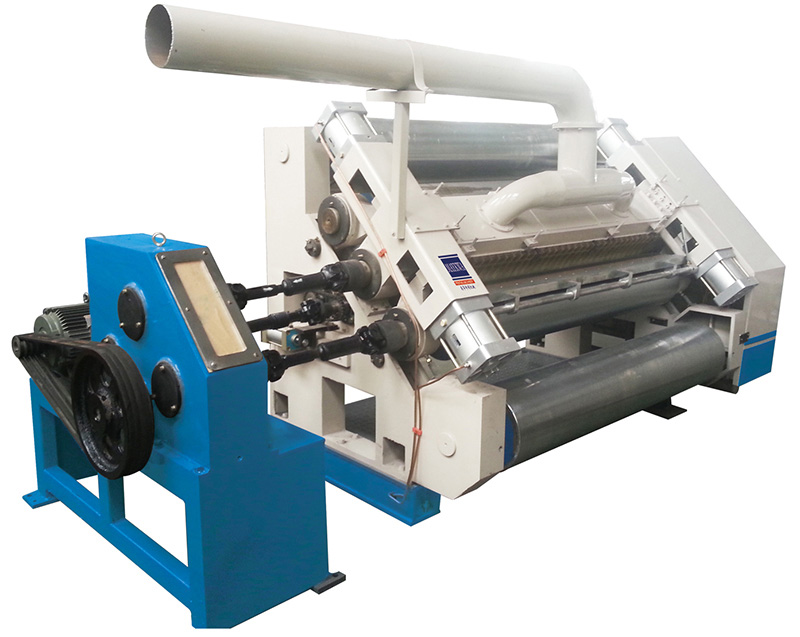

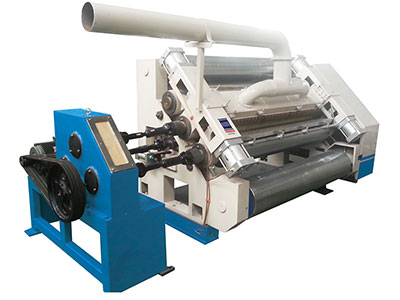

Model: SF-100/120

• As its name shows, our SF-100/120 vacuum suction fingerless single facer adopts a fingerless vacuum suction.
• The maximum machine speed is 100m/min for the SF-100 model and 120m/min for the SF-120 model.
• Diameters of corrugating rolls are respectively 280mm and 320mm for the two models of vacuum suction fingerless single facers.
• Gluing roller diameter of our carton making machinery is 215mm.
• This corrugated board manufacturing equipment comes with preheating rolls for liner and medium.
• Lifting of upper corrugated roll, pressure roll and glue roll are pneumatically controlled.
• Bearings of corrugated rolls and pressure rolls use high temperature lubrication grease.
• Motorized glue dividing device makes for easy breadth adjustment.
• Thanks to the independent gear box, gimbal axis and the oil-immersed lubrication system, our vacuum suction fingerless single facer produces low noise and can keep working stably.
• Main controller and related roll stand adopt linkage control.
