High Speed Single Facer Line

This product has been discontinued and removed from our shelves.

Our high speed single facer line is specially design for large-scale single facer paperboard production. This paperboard production line can slit and stack 1 to 4 different sizes of paperboards at the same time.

Technical Parameters of High Speed Single Facer Line
The maximum working speeds for different equipment are 80m/min, 120m/min and 150m/min.
Flute type: A, B, C, BC, E, F, G and N
Effective width: 1200-2500mm
Cutting precision: ±1mm
Cutting range: minimum 130mm

Reference Equipment List for the High Speed Single Facer Line
Hi-speed single facer cut-off with stacker 1 set
Vacuum suction fingerless single facer 1 or 2 sets
Hydraulic mill roll stand 1 or 2 sets
Pre-heater 2 sets
Overhead conveying bridge 1 set

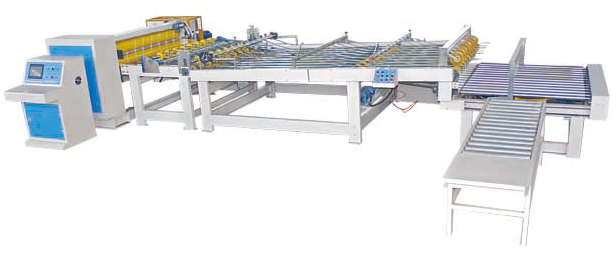

High-Speed Single Facer Sheeter with Stacker
This machine is used to slit and cut the single facer paper into the same or different sizes according to customers’ needs. The sheeter is composed of the feeding unit, slitting unit, cut-off unit, conveyor and the stacker.

The cut-off unit is controlled by AC servo system and the driver power is 5.5kW. The stacker whose maximum stacking height is 300mm can achieve vertical stacking and auto transverse paper output. This paperboard processing equipment will alarm for job change when 30 pieces of paper sheets are left in the current job.

Parameters
Flute type: A, B, C, BC, E, F
Maximum speed: 100m/min, 120m/min, 150m/min
Width: 1200mm, 1600mm, 1800mm, 2000mm etc.
Cutting size: minimum 300mm
Cutting and slitting accuracy: ±1mm
