Introduce:

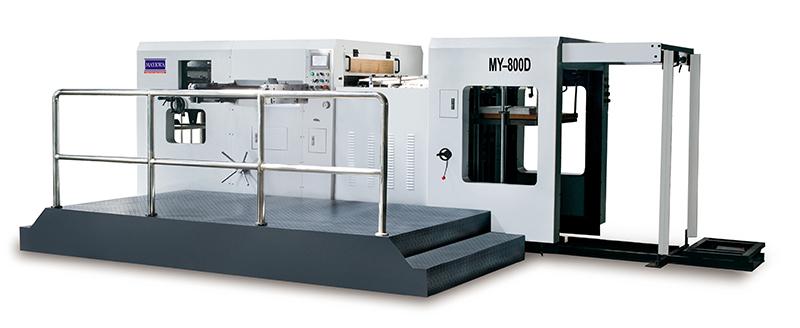

MY-800D automatic die cutting and creasing machine is the key equipment for the processing of paper products such as cardboard boxes, paper boxes and high standards paper products. It adopts the integral assembly, integral transportation, and the integral delivery to realize starting production in a day and reducing the expenditure.

• The equipment can use different thickness of paper to realize parallel delivery with individually adjusted. Travel can be increased by adjusting the switch.
• Equipped with a spare paper feeder to put the paper in place first, then carry out conversion to realize continuously feeding without stopping.
• Using Taiwan double-speed reduction motor to feed and receive paper can improve work efficiency. A double-speed motor with long service life and high torque can reduce speed quickly and save time.

• The paper conveyor part adopts stainless steel plate to prevent rust, stabilize the paper conveyor and is easy to put in place.
• The paper positioning is carried out with two push-pull devices, which is convenient for conversion and suitable for different paper.

• Use durable and stable steel material. And bearing made from machining center has high accuracy and high precision.
• Use high pressure oil pump to lubricate the oil tube and reduce parts wear. Add oil cooler to cool the lubricating oil. Regularly lubricate the main chain to improve the equipment efficiency.
• The drive mechanism adopts high speed die cutting and high precision oscillating bar platform to improve base plate speed.
• Ensure service life and stable die cutting accuracy by the rack chain made in German.
• Use Taiwan intermittent structure as main transmission to improve die cutting accuracy, speed and lower noise.
• Adopts pneumatic brake clutch and rotary joint imported from Italy meet European standards to ensure quick clutch, stable force, long life and low noise.

• Auto stacking, neat and orderly.
• When the stack reaches the required height, push the tray in and replaced a new pickup board then pull out the tray to realize stacking without stopping.
• Pneumatic sampling to realize the die-cutting paper checking at any time.

• Using Japan OMRON PLC computer automatic control system. From paper feeding, conveyor to die-cutting, paper receiving, automatic detection control. At the same time, Japan Toshiba frequency converter and the main motor can provide strong power.
• Using the man-machine interface display system to display various working conditions and point out the fault location and propose solutions.
• Equipped with all kinds of safety protection devices to provide audible and visual alarm in case of failure and automatically shut down to ensure man-machine safety.
