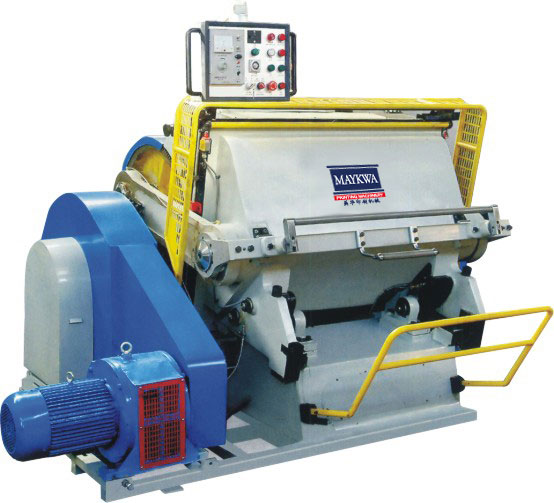

Hand Platen Die Cutting Creasing Machine

Model: TYMB1100, 1200, 1300, 1400, 1500, 1600, 1800

Hand platen die cutting creasing machine comes with firm structure, exquisite design, great cutting, high precision, easy operation, safety and reliability, etc. It is a special equipment suitable for all assortments of common card boards, corrugated boards, plastic sheets, and leather products in printing, packing, decorating and plastic industries.

Features
1. Hand platen die cutting creasing machine adopts high quality material and high tension of casting.
2. Four-shaft bevel wheel structure provides steady operation, great cutting, and low noise.
3. Air brake clutch with flexibility ensures reliability and safety.
4. Connecting rod adopts 45 carbon steel with high strength.
5. It comes with sound height layout and great frame angle.
6. Micro-adjusting gear device features high precision.
7. The electrical system is in full compliance with IEC standard.
8. The equipment has three functions like single slitting, successive slitting, and time delay.
9. Its scope can be adjusted.
10. Safety protection system is reliable. And concentrated lubricating system is also available.

Parameters of Hand Platen Die Cutting Creasing Machine
Model Inner Chase Size Speed Max. Rule Length Motor Power Machine Weight Overall Dimensions
PYQ401C 750×520mm 25 < 15m 2.2kw 2000kg 2300×1500×1500mm
PYQ203C 930×670mm 23±3 < 25m 4kw 3000kg 2350×1900×1800mm
PYQ203A 930×670mm 23±3 < 30m 5.5kw 3500kg 2350×1900×1800mm
ML1100 1100×800mm 20±2 < 30m 5.5kw 4500kg 2450×2100×1900mm
ML1200 1200×820mm 20±2 < 32m 5.5kw 5000kg 2500×2100×1900mm
ML1300 1300×920mm 15±2 < 40m 7.5kw 6000kg 2550×2100×1950mm
ML1400 1400×1000mm 15±2 < 45m 7.5kw 6500kg 2650×2100×2000mm
ML1500 1500×1050mm 14±2 < 45m 7.5kw 7000kg 2700×2100×2150mm
ML1500A 1500×1150mm 14±2 < 45m 7.5kw 7300kg 2700×2100×2200mm
ML1600 1600×1250mm 13±2 < 50m 11kw 11500kg 2800×2250×2300mm
ML1800 1800×1280mm 13±2 < 60m 15kw 13000kg 3000×2250×2350mm
ML1800A 1800×1400mm 13±2 < 60m 15kw 14000kg 3000×2300×2500mm
ML2000 2000×1400mm 12±2 < 65m 15kw 15500kg 3100×2330×2600mm
ML2200 2200×1400mm 12±2 < 68m 18kw 16500kg 3300×2330×2800mm
ML2500 2500×1400mm 12±2 < 70m 18kw 18500kg 3600×2330×3100mm

As an experienced hand platen die cutting creasing machine manufacturer based in China, we also provide semi-auto flute laminating machine, vacuum suction fingerless single facer, window patching machine and paper roll sheeting machine.
