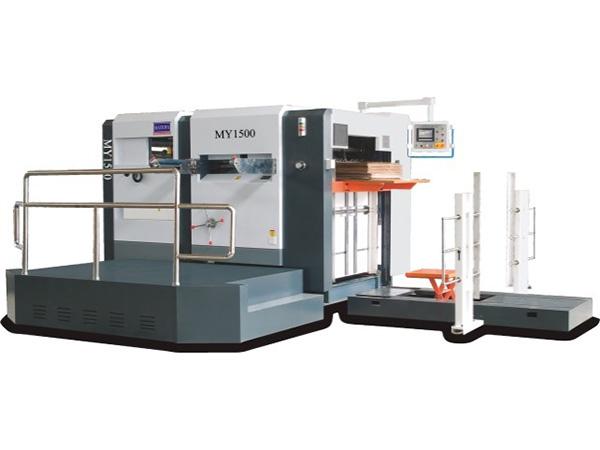

The semi-automatic die cutting and creasing machine is a professional equipment for die cutting of high end colorful boxes. This machine adopts advanced high intensity gripper bars which can be used for processing of various paper board, cardboard and corrugated board. The front, back and side positioning device can ensure highly precise die cutting of the paper. It is also equipped with high precision intermittent mechanism, flexible pneumatic clutch and pneumatic locking device. By using the programmable controller and human-computer interface, the machine speed, processing number and total running time can be displayed by the digit. Meanwhile, the display of the machine failure can also make the failure removal more convenient. The stepless speed regulating of the main motor is controlled by the frequency converter so that the running is stable. This die cutting and creasing machine is equipped with many sensors and safety devices to ensure normal running of the machine and personal security. The adjustment of the die cutting pressure is easy. And the front and back pressure can be adjusted independently. There is also optional die cutting mode without gripper edge.
The advantages of the design of this machine is reducing labor intensity of the operators, improving production efficiency and processing precision besides satisfying the normal performance of common flat-bed die cutting machine. This machine adopts paper feeding from the lower point of the delivery wheel which makes the operation easier, thus effectively reducing labor intensity. The paper pressing and conveying is carried out by belt conveyor, so that it can satisfy the requirements for paper bending. It uses secondary positioning device to realize more precise die cutting.
|Maxi paper size||1200*780mm||1300*960mm||1500*1100mm|
|Mini paper size||400*400mm||400*400mm||500*400mm|
|Maxi cutting size||1180*760mm||1280*940mm||1480*1080mm|
|Maxi cutting pressure||300T||300T||300T|
|Maxi paper thickness||1-7mm carton||1-7mm carton||1-7mm carton|
|Maxi cutting speed||4500pcs/h||4500pcs/h||4000pcs/h|
| || || |
