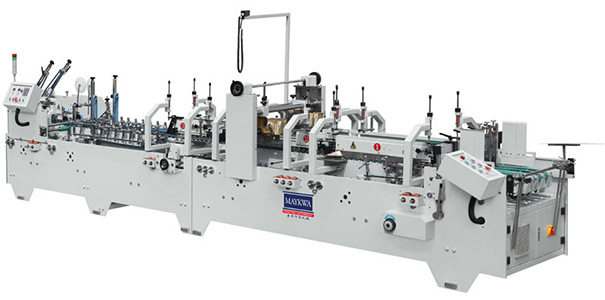

Pre Fold Crash Lock Bottom Folder Gluer

Model: FG-800AG, FG-1200AG

Pre fold crash lock bottom folder gluer, also known as pre-fold lock-bottom high-speed automatic pasting machine, is a newly designed equipment which comes with high speed, pretty surface and simple operation. It is both economical and practical. Therefore, our equipment is widely employed for pasting lock-bottom or non lock-bottom boxes.

Parameters of Pre Fold Crash Lock Bottom Folder Gluer
Linear velocity 0 ~ 220m /min
Suitable paper quality 220 ~ 800g /m² card paper
Paste box basic form One-side edge pastes, two-side edge pastes.
Feeding way Automatically and continuously feeding
Adhesive Solute type
Needed power AC380v 5.5 KW
Weight 1500KG
Overall size 8.0m ×1.2m×.3m
The scope of count 0 ~ 999999
FG-800AG
Type of box (Amax) (A min) (B max) (B min) (C min) (D min) (F min)
Straight-line box 620mm 70mm 620mm 110mm 8mm 70mm 55mm
Lock bottom box 620mm 160mm 460mm 180mm 9mm 90mm 90mm
FG-1200AG
Type of box (Amax) (A min) (B max) (B min) (C min) (D min) (F min)
Straight-line box 700mm 70mm 800mm 110mm 8mm 70mm 51mm
Lock bottom box 700mm 160mm 700mm 180mm 9mm 90mm 85mm

As a specialized pre fold crash lock bottom folder gluer manufacturer based in China, our company also offers corrugated paper platen die cutting creasing machine, vacuum suction fingerless single facer, automatic flute laminating machine, and more.
