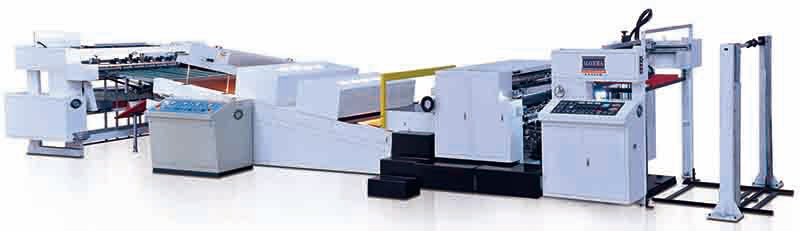

UV Spot Coating Machine
This product has been discontinued and removed from our shelves.
The HUV-104 UV spot coating machine developed by our company uses upper swing gripper for passing the paper sheets to achieve high speed up to 6600 sheets per hour. Teflon belt UV curing system of our paper coating equipment has the advantages of high speed, high registration accuracy, high UV curing efficiency and low power consumption.
Parameters of UV Spot Coating Machine| Model | HUV-104 |
| Maximum sheet size (L× W) | 730×1040mm |
| Minimum sheet size (L× W) | 310× 406mm |
| Maximum coating area (L×W) | 720×1030mm |
| Sheet thickness | 100 ~ 450gsm |
| Maximum coating speed | Up to7000 sheets/hour |
| Equipment total power | 73.12kW (water base)/49kW (solvent base) |
| Continuous operation total power | 45.4kW (water base)/49kW (solvent base) |
| Machine dimension (L× W× H) | 11756× 2300×2010 mm |
| Machine weight | 8000kg |
