This product has been discontinued and removed from our shelves.

Model: AYW-1050

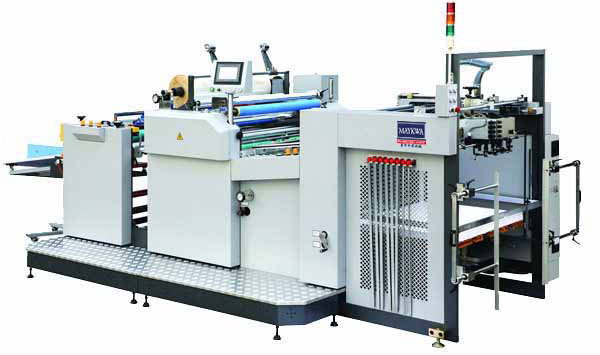

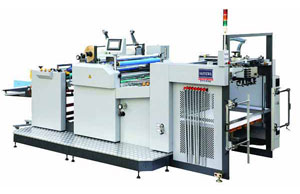

AYW-1050 pre glued film laminating machine is a new generation with complete automation of paper feeding system, lamination, paper cutting, paper receiving and temperature control and specially used for lamination of glueless or pre glued film and paper. It centralizes the features of high automation, high precision of lamination, humanized configuration and easy operation. Therefore, our pre glued film laminating machine is the best choice with high cost performance for large and medium-size enterprises.

Features
1. Pre glued film laminating machine adopts man-machine interface system which can simplify the machine operation with color touch screen. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., it can realize completely automated operation. For instance, pneumatic cutting system realizes automatic paper cut as long as the operator inputs the size of workable paper. Additionally, working status of the machine can be checked at any time.
2. Automatic paper feeder of the equipment adopts oil-free vacuum pump to feed paper automatically. And paper can be added even if the machine is kept running, which greatly improves working efficiency. Also, automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When no paper, paper break or paper superposition occurs, our product will stop automatically for self-protection.
3. Its conveying table is furnished with air aspirator and front lay etc. to regulate paper conveying and overlap and improve lamination prevision. Air expansion shaft releases film, and perfects the precision of film release, and also makes the loading and unloading of film roll much more convenient. Additionally, the combination of air expansion shaft and braking device can adjust film release tension and release speed.
4. High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
5. Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality.
6. Paper receiving unit is furnished with not only vibrating receiving table but also winding roller. After cut, the laminated paper will be sent automatically to vibrating receiving table and be put into order. If laminated paper doesn’t need to be cut, it can be winded automatically by winding roller. Paper receiving unit and cutting unit can be easily moved away from laminating unit. This special design makes the machine maintenance more convenient.

MAY KWA is a specialized pre glued film laminating machine manufacturer and supplier in China. Our company also provides auto spot UV coating machine, CNC slitter scorer machine, auto die cutting stripping machine and more.
