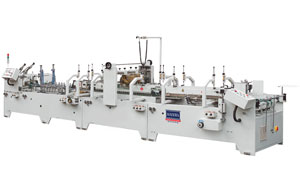

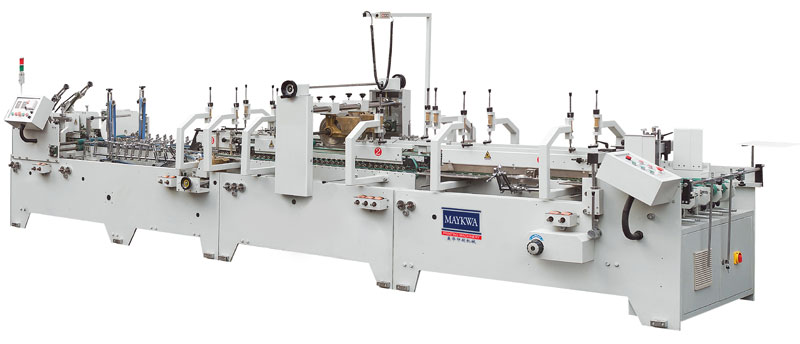

Crash Lock Bottom Folder Gluer Machine

This product has been discontinued and removed from our shelves.

Model: FGH-800, FGH-1200, FGH-1300

Crash lock bottom folder gluer machine is derived from four-folded or edged-bottom equipment. Its reasonable construction enables it provides convenient and flexible operation at a high speed. Due to its excellent performance, the equipment is widely applied to manufacture paper boxes used for medicine, cosmetic, electric components, toothpaste box, etc. Paper box without edged-bottom is also available by using our product.

Technical Parameter
Suitable paper quality 220 ~ 800g /m² Card paper and E wave corrugated paper.
Paste box basic form One-side edge pastes, two-side edge pastes, base pastes Both sides are folded, both sides are pre-folded. for convenient pasting
Way of folding in reverse One and three fold 90º ,two and four fold 180º
Feeding way Automatically and continuously feeding
Adhesive Solute type
Needed power 6KW 380V
Overall Size 8.8m ×1.1m×1.35m
FGH-800
Type of box (Amax) (A min) (B max) (B min) (C min) (D min) (F min)
Straight-line box 700mm 70mm 620mm 110mm 8mm 70mm 51mm
Lock bottom box 700mm 160mm 570mm 180mm 9mm 90mm 85mm
FGH-1200
Type of box (Amax) (A min) (B max) (B min) (C min) (D min) (F min)
Straight line box 700mm 70mm 840mm 110mm 8mm 70mm 51mm
Lock bottom box 700mm 160mm 800mm 180mm 9mm 90mm 85mm
FGH-1300
Type of box (Amax) (A min) (B max) (B min) (C min) (D min) (F min)
Straight line box 700mm 70mm 940mm 110mm 8mm 70mm 51mm
Lock bottom box 700mm 160mm 900mm 180mm 9mm 90mm 85mm

We are a China-based manufacturer and supplier of crash lock bottom folder gluer machine. We offer a variety of products, including window patching machine, paperboard gluing machine, auto spot UV coating machine, and more.
