This product has been discontinued and removed from our shelves.

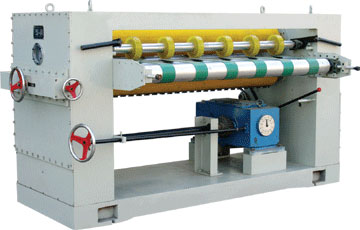

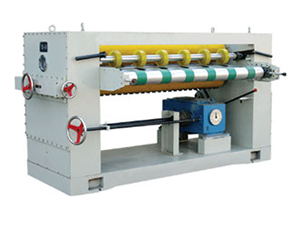

Model: MC-80

Mechanical cardboard cutter machine with design speed 80m/min, called mechanical cutter for short, adopts computer control system to meet the requirements of the production line of no more than 150m per minute. It offers longer life span and comes with reasonable price and low maintenance cost. Commonly, no problems appear in one year.

Features
1. Paper cutting range of mechanical cardboard cutter machine is between 600mm and 2600mm, cutting off precision ranges from -2.5mm to +0.25mm.
2. It has 1400mm to 2200mm effective width.
3. The length of required cardboard can be changed through adjusting the rotate speed of P derailleur by hand.
4. The stability and precision of the equipment have been greatly improved through clearance adjustment device and gear parallel device.
5. Double brace speeder is adopted to make the edge shaft run in uniform motion and the instantaneous speed of cutting off edge in working are invariables with the running speed of cardboard.
6. Drive power from main transmission offers good synchronization and high precision cutting.

As a mechanical cardboard cutter machine manufacturer and supplier in China, we at MAY KWA also provide automatic flute laminating machine, spot UV coating machine, auto die cutting stripping machine, and more.
